Self-locking lightweight concrete blocks for partition walls – fast construction, less mortar, and reduced finishing labor
V-Lite Plus solid bricks use a tongue-and-groove design so that the bricks interlock during construction, helping workers easily align straight, speeding up construction, and reducing the amount of mortar used.
Suitable for partition walls for houses, villas, offices, hotels, apartments, and commercial buildings.
The key specifications of V-Lite Plus solid brick, ideal for contractors, investors and designers to assess quickly before receiving the detailed datasheet.
Specifications may vary by production standard, product batch and each project's technical requirements. Please contact V-Lite for the latest datasheet.

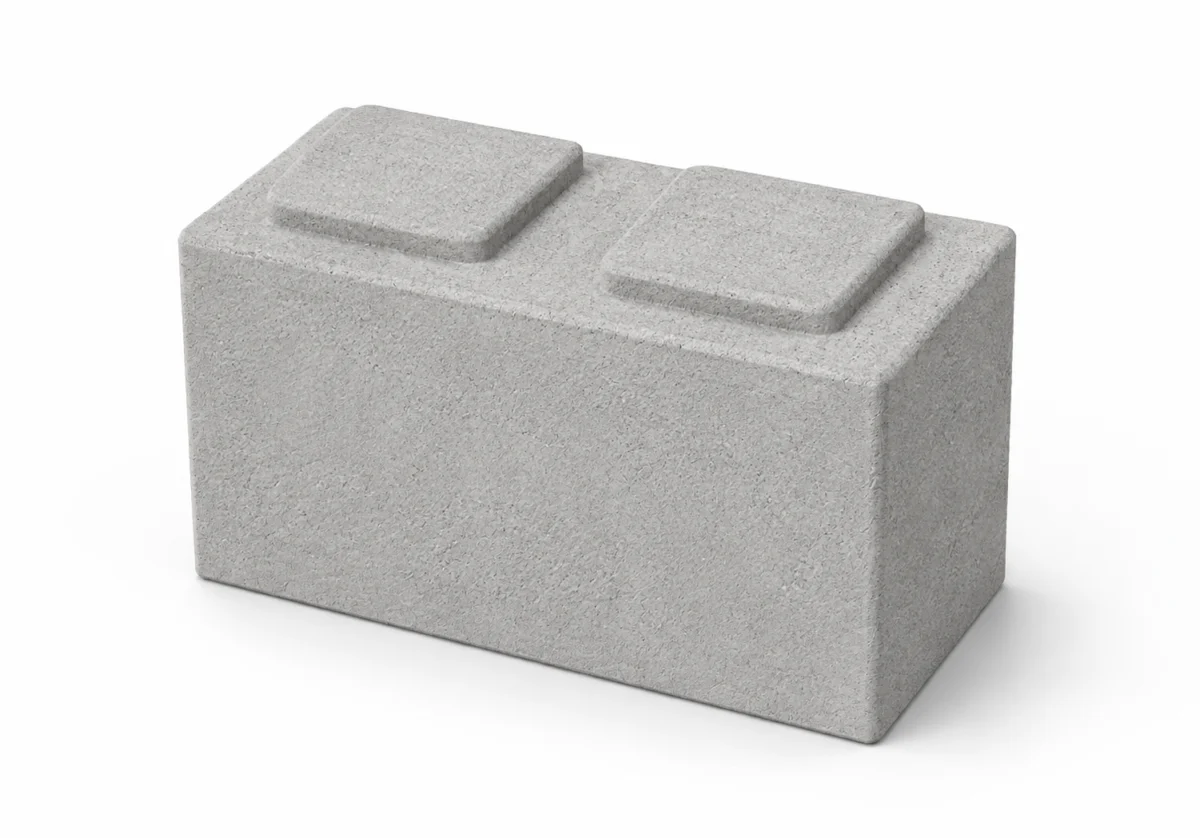

V-Lite Plus solid brick is a line of solid self-locking lightweight concrete brick, developed for partition wall categories that require rapid construction, use little mortar, and reduce finishing work.

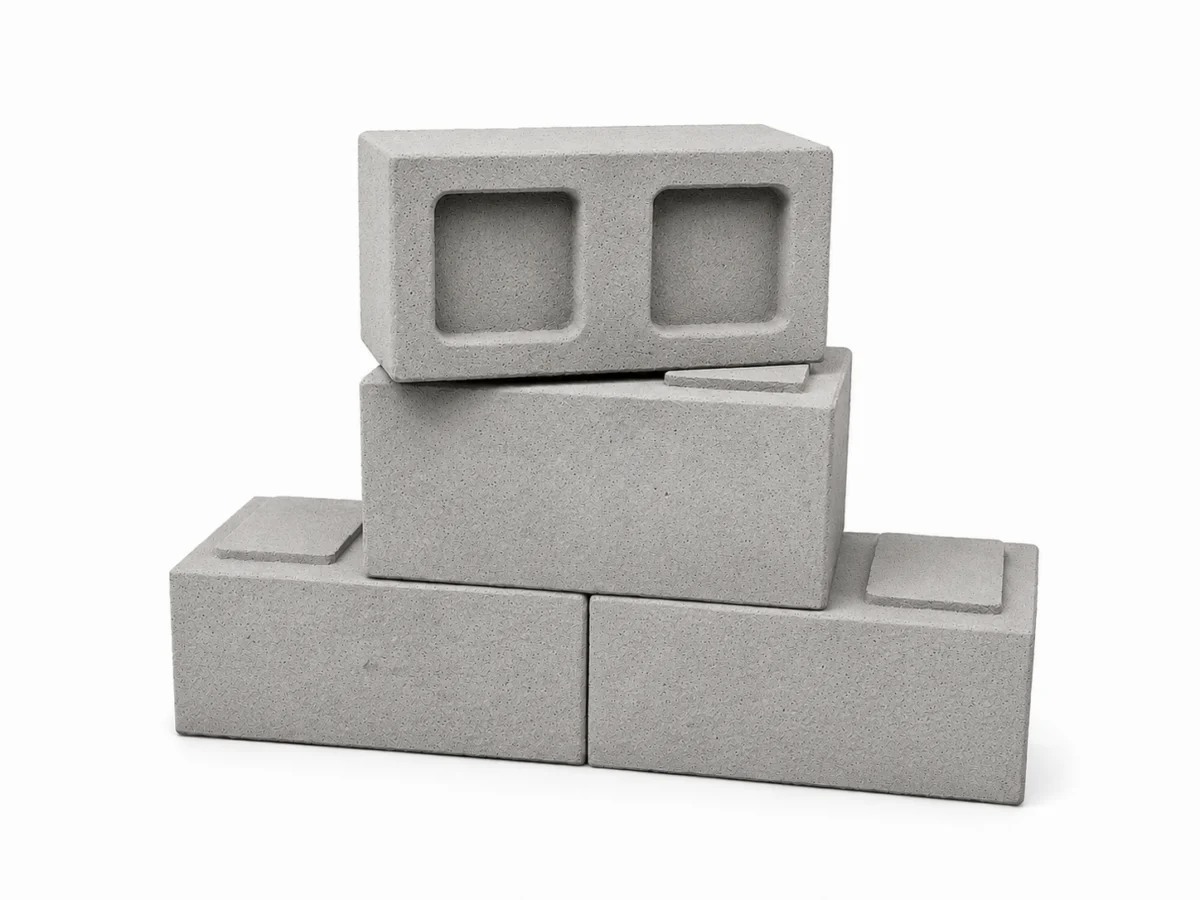

Yin-yang design helps the bricks interlock during construction, making it easier for workers to align and reducing the need for adjustments compared to traditional building methods.
Unlike V-Lite hollow block with a hollow core to accommodate technical layouts and reinforcement options, V-Lite Plus solid brick has a solid brick body, focusing on partitions and interior walls.
The flat surface of the brick helps reduce the need for thick plastering and can be finished with thin skim coat of 2-3 mm depending on the construction requirements.
The cost of building a wall is not just in the bricks. Mortar, labor, alignment time, and the finishing plaster layer all affect the total cost.
V-Lite Plus solid brick is designed to reduce these tasks right from the wall construction process.
The bricks match each other With a yin-yang design, it helps workers easily align straight and build continuously compared to the method of having to align each individual brick.
The self-locking design helps reduce masonry mortar by 50–60%, limiting the materials that must be mixed, transported and handled on site.
The flat brick surface helps reduce the need for thick plastering. The wall can be finished with thin skim coat of 2-3 mm per project requirements.
Solid brick body suitable for categories partition walls and interior walls Needs clean, fast construction and easy finishing.
Can be used for interior partition walls houses, villas, offices, hotels, apartments, and commercial buildings.
Line lightweight autoclaved aerated concrete block, V-Lite Plus helps reduce the wall load on the building's structural system.
Two brick lines both use a self-locking design but serve different needs. The choice should be based on wall category, technical requirements and construction method of the project.
Self-locking hollow lightweight concrete brick, suitable for perimeter walls, factories, steel-frame projects and items that may need a hollow core for reinforcement or technical routing per the construction plan.
Self-locking solid lightweight concrete brick, suitable for partition walls, interior walls and items that need to replace traditional bricks with a lighter, flatter, faster-to-build material.
Not sure if the project should use V-Lite Hollow Bricks or V-Lite Plus Solid Bricks?
Get help choosing the right brickV-Lite Plus is suitable for the following categories partition walls and interior walls Requires light weight, fast construction progress, and an easily finishable surface.
Suitable for bedroom partition walls, living rooms, functional areas, and indoor wall projects requiring fast and clean construction.
Supports creating an even wall surface, reduces finishing volume and is suitable for items that require good surface quality.

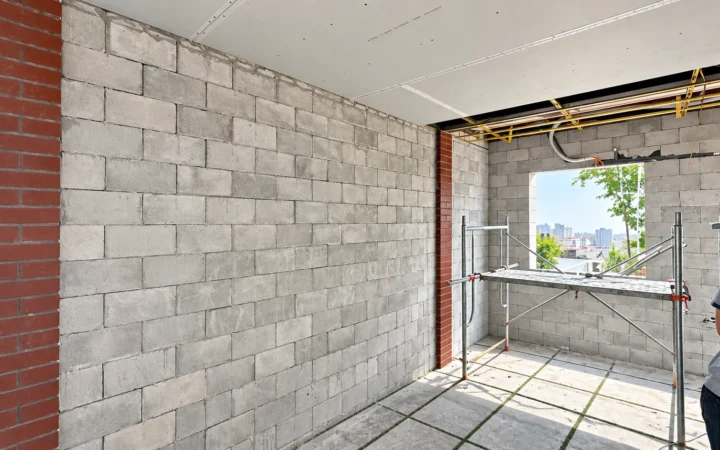

Suitable for office spaces that need lightweight partitions, quick construction and limited finishing work.
Light weight helps reduce pressure on existing structures, suitable for renovation items or site changes.
Can be used for partition wall items in factories, warehouses and production buildings that need fast construction progress.
Suitable for stores, showrooms, service offices and items that need to be completed quickly, compactly and economically.
The specifications below are reference figures for the V-Lite Plus solid brick line. Please contact V-Lite for the datasheet and technical advice suited to each project.
| Dimensions | 300 × 150 × 150 mm |
|---|---|
| Structure & Linkage | Interlocking solid lightweight concrete brick |
| Weight per brick | 5–5.5 kg |
| Density | 750–850 kg/m³ |
| Compressive strength | 7 MPa |
| Max drying shrinkage | 0,15% |
| Water absorption | Very low |
| Fire resistance | Non-combustible |
| Sound / thermal insulation | Very good |
| Amount of mortar | 50–60% off |
| Surface finishing | Thin 2–3 mm skim coat |
| Preferred applications | Partition walls, replacing traditional bricks in many construction items |
Specifications may vary by production standard, product batch and each project's technical requirements. Please contact V-Lite for the latest datasheet.
V-Lite Plus not only optimizes the brick itself but also helps save on mortar, labour, schedule and wall finishing.
| Criteria | Traditional masonry brick | V-Lite Plus Solid Brick |
|---|---|---|
| How to link | Alignment with mortar joints | Self-locking positive and negative |
| Masonry mortar | Use more mortar | Reduce the amount of mortar by 50–60%. |
| Weight | Heavier, increases wall load | Lighter, about 5–5.5 kg/tablet |
| Wall surface | Often requires thicker plaster | Thin 2–3 mm skim coat |
| Partition wall | Popular but takes a lot of work | Optimal for partition walls and indoor walls |
| Total construction cost | May arise in stucco, labor and finishing | Optimization in mortar, labor, progress and finishing |

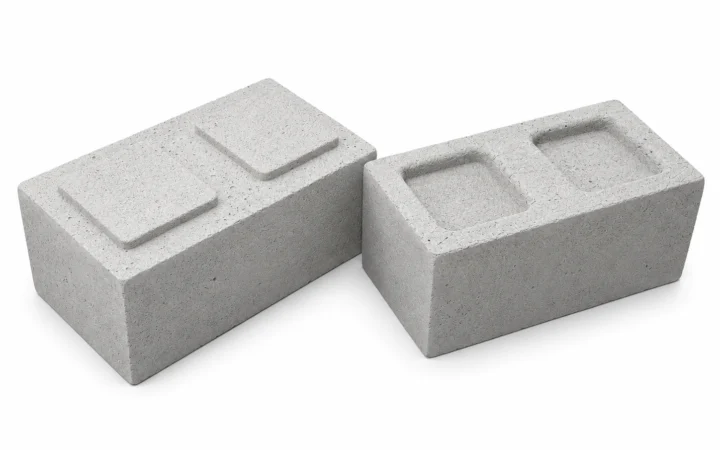

Thanks to the male–female self-locking design, V-Lite Plus bricks are easy to align and connect as they are laid, helping workers work faster and control wall flatness better.
Check the floor, mark the wall position and prepare materials before starting construction.
Lay and align the first brick course to ensure the correct position, alignment and level.
Lay the next bricks so the male–female profiles interlock, keeping the course stable and reducing alignment work.
Continue laying the brick courses per technical guidance while checking straightness, flatness and level during construction.
After building, treat the surface as required by the project. Flat walls can be finished with a 2–3 mm skim coat.
The construction process may be adjusted according to the design, actual conditions and technical requirements of each project.
Quickly download the documents you need to learn about the product, check technical specifications and consult construction guidance before using V-Lite Plus in your project.
Product overview, benefits, applications and basic information about V-Lite Plus Solid Tiles.
Download catalogueV-Lite Plus's reference specifications serve consulting, design and construction.
Download datasheetV-Lite Plus solid brick features solid brick body, optimized for partition walls and interior walls.
V-Lite hollow bricks feature interconnected hollow cores, allowing for the layout of electricity, water, technical cables, reinforcement or implementation of strengthening plans appropriate to the structural design.
The product is suitable for interior partition wall categories. houses, villas, offices, hotels, apartments, renovation projects and commercial projects.
Yes. The self-locking design helps reduce masonry mortar by 50–60% compared to the traditional masonry method.
The flat surface of the bricks helps reduce the need for thick plastering. When constructed with the correct technique, the wall can be finished with thin skim coat of 2-3 mm depending on the surface requirements.
Can V-Lite Plus be used for the applications steel frame interior partition wall. For high walls, long walls, or structures that require reinforcement or steel bars in the core, you should consult with V-Lite technical team to select the appropriate brick line.
No. The V-Lite Plus is solid brick, there is no hollow core to arrange reinforcing steel or create columns or concealed wall ties.
For these items, it is recommended to use V-Lite hollow block according to the appropriate technical plan.
